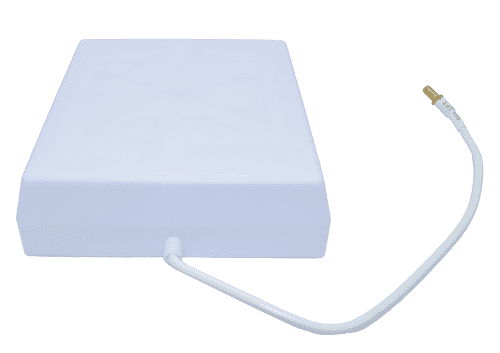

Panel Antenna SISO, 698-2700MHz, SMA-Female

£19.50 ex. VAT (£23.40 inc. VAT)

In Stock: 33

Product Code:  MPA-727-68-SS-SF

Replaced MPA-727S-SF

Read more

Specification:

Product Features
■ Wide Frequency Band Band 698-2700MHz
■ 2G/3G/4G/5G LTE Coverage
■ Low VSWR &High Gain
■ Corrosion Resistance, Anti-aging
■ Easy Installations
■ Widely used for in-building solution

Technical & Mechanical Specification
Model No. MPA-727-68-SS-SF
Frequency 698-806 806-960 1710-2700
Polarization Vertical
Gain (dBi) 6 8 8.5
Horizontal beam width(°) 98 85 65
Vertical beam width(°) 85 60 45
VSWR ≤1.8 ≤1.5 ≤1.5
Total Input Power(W) 50
Impedance (ohm) 50
Connector SMA-female
Colour White
Working Temp(deg) -40~+55
Radome Material ABS (UV Stabilized)
Dimensions(mm) 165*155*50
