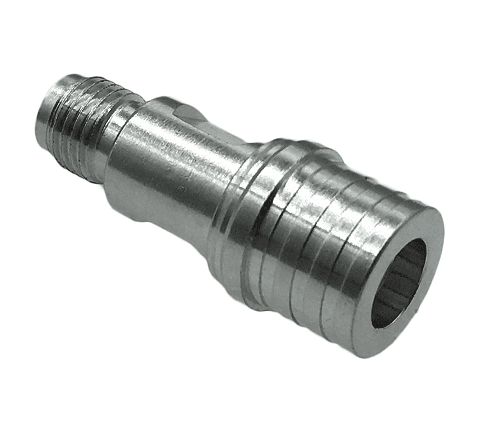

Specification:
Electrical Data
Impedance - 50Ω
Frequency Range - 0~3GHz
Working Voltage - 335V max
Withstand Voltage - 1000V rms
VSWR
-Straight - ≤ 1.1
-Right Angle - ≤ 1.2
Contact Resistance
-center contact ≤3mΩ
-outer contact ≤2mΩ
Insulation Resistance ≥5000MΩ
Mechanical Data
Temperature Range - -55°C~+155°
Durability (matings) - >500
Material Data
Body - Brass, Tri-Metal
Centre Conductor - Phosphor Bronze, Gold Plated
O-ring Sealing - 6146 Silastic
Insulator - PTFE
Interface Standard
MIL-C-39012/CECC 22110/IEC 60169-15
Drawing
