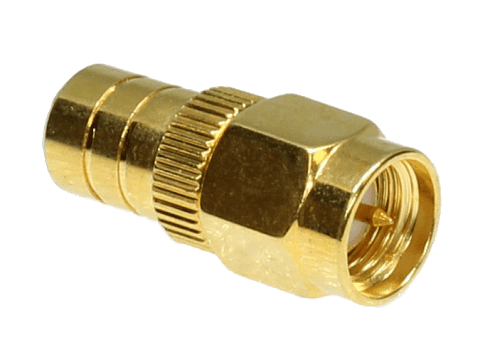

SMB Plug - SMA Plug -

£1.65 ex. VAT (£1.98 inc. VAT)

In Stock: 1

Product Code:  290-5097-070

Specification:

Specification:

Materials & Plating
Shell/Body - Brass, Gold Plated
Conductor - Beryllium-Cooper, Gold Plated
Insulator - PTFE

Electrical Characteristics
Impedance - 50 ohm
Frequency Range Max. - DC - 3GHz
Dielectric Withstanding Voltage - 750V (RMS)
Contact Resistance - Centre ≤ 6mΩ, Outer ≤ 2.5mΩ
Insulation Resistance - ≥ 1000mΩ

Mechanical Characteristics
Mating - SMA:1/4-36UNS-2B SMB: Snap-on coupling
Durability - ≥ 500 cycles

Environmental Characteristics
Temperature Range: - 55°C to +155°C

Drawing:
