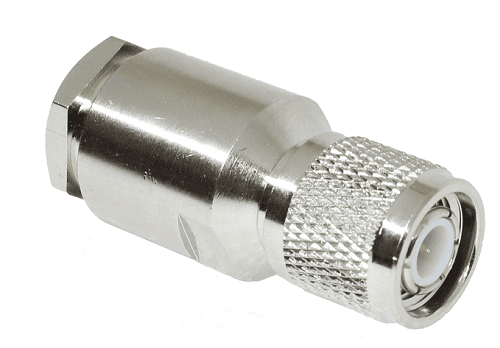

TNC Clamp Plug RG213

Name: TNC Clamp Plug RG213
SKU: 213-1123-070
Price: 3.00 GBP
Availability: InStock

£2.50 ex. VAT (£3.00 inc. VAT)

In Stock: 10

Product Code: 213-1123-070

Specification:

Specification:

Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - Brass, Gold Plated
Insulator - PTFE

Electrical Characteristics
Impedance - 50 ohm
Frequency Range Max. - DC - 3GHz
Dielectric Withstanding Voltage - 1500V (RMS)
Contact Resistance - Centre ≤ 10mΩ, Outer ≤ 2.5mΩ
Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics
Mating - 7/16-28UNEF-2B
Durability - ≥ 500 cycles

Environmental Characteristics
Temperature Range: - 55°C to +155°C

Drawing:
