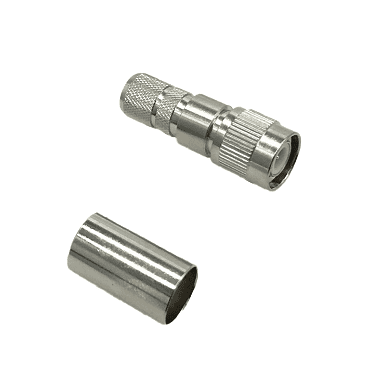

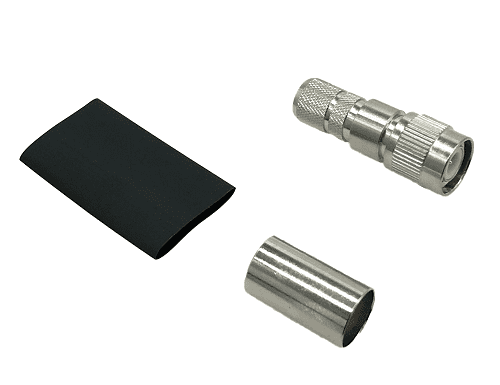

TNC Crimp Plug LMR400 Easy-Fit
| Qty From | Qty To | Unit Price |
|---|---|---|
| 1 | 9 | £3.50 |
| 10 | 49 | £3.40 |
| 50 | 99 | £2.98 |
| 100 | ∞ | £2.38 |
Product Code:
213-1080EZ-088
Specification:
Material and Plating
Body - Brass, Nickel Plated
Insulator PTFE
Centre Conductor - Phosphor, Gold Plated
Electrical
Characteristic Impedance - 50 ohm
Frequency Range - 0.3-GHz
VSWR - ≤1.20
Dielectric Withstanding Voltage - ≥1500V RMS,50Hz,at sea level
Dielectric Resistance - ≥5000MΩ
Contact Resistance - Centre Contact ≤1.5mΩ, Outer Contact ≤0.4mΩ
Mechanical
Durability - Mating cycles ≥500 cycles
Environmental
Temperature Range - -40℃～+85℃
RoHS Compliance - Full ROHS compliance

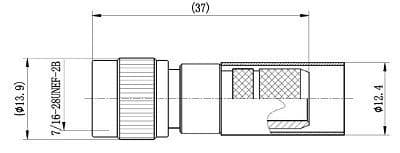

Drawing
Body - Brass, Nickel Plated
Insulator PTFE
Centre Conductor - Phosphor, Gold Plated
Electrical
Characteristic Impedance - 50 ohm
Frequency Range - 0.3-GHz
VSWR - ≤1.20
Dielectric Withstanding Voltage - ≥1500V RMS,50Hz,at sea level
Dielectric Resistance - ≥5000MΩ
Contact Resistance - Centre Contact ≤1.5mΩ, Outer Contact ≤0.4mΩ
Mechanical
Durability - Mating cycles ≥500 cycles
Environmental
Temperature Range - -40℃～+85℃
RoHS Compliance - Full ROHS compliance
Drawing
