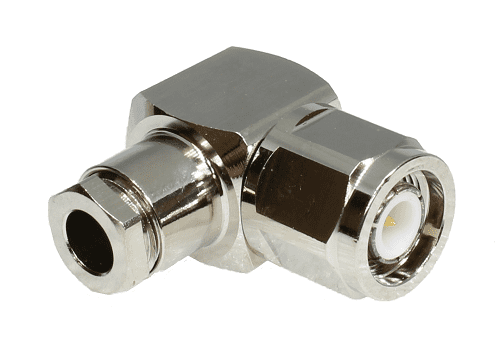

TNC Right-Angled Clamp Plug LMR240 (Hex Coupling)

£1.80 ex. VAT (£2.16 inc. VAT)

In Stock: 2

Product Code:  213-1644-070

Specification:

Specification:

Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - Brass, Gold Plated
Insulator - PTFE

Electrical Characteristics
Impedance - 50 ohm
Frequency Range Max. - DC - 3GHz
Dielectric Withstanding Voltage - 1500V (RMS)
Contact Resistance - Centre ≤ 10mΩ, Outer ≤ 2.5mΩ
Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics
Mating - 7/16-28UNEF-2B
Durability - ≥ 500 cycles

Environmental Characteristics
Temperature Range: - 55°C to +155°C

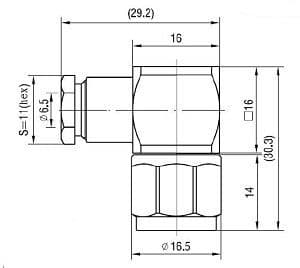

Drawing:
