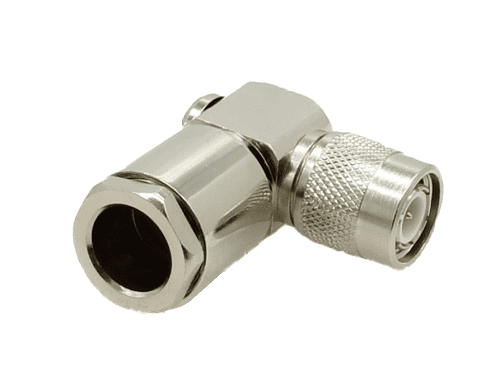

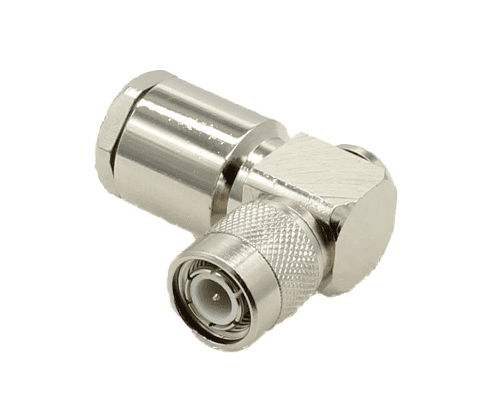

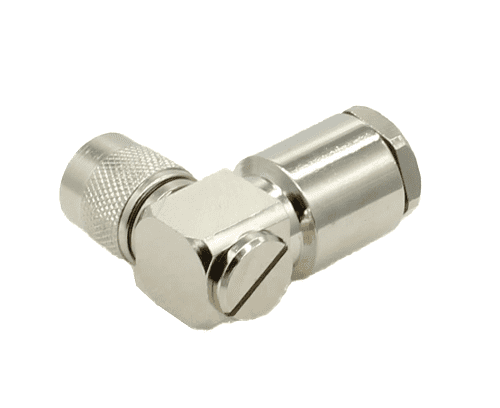

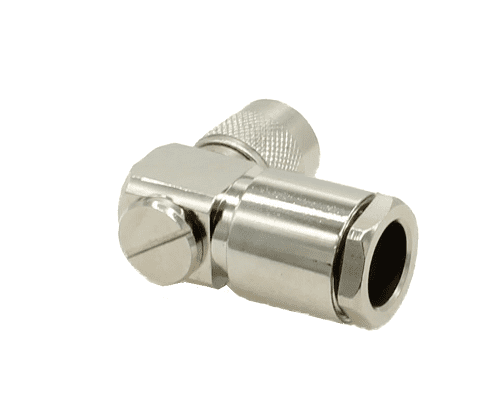

TNC Right-Angled Clamp PLug RG213, 214, 215, 165, 225,

£2.55 ex. VAT (£3.06 inc. VAT)

In Stock: 158

Product Code: 213-1623K-021

Specification:

Specification:

Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - Brass, Gold Plated
Insulator - PTFE
Gasket - Silicon, Rubber, Red Colour

Electrical Characteristics
Impedance - 50 ohm
Frequency Range Max. - DC - 11.0 GHz
Dielectric Withstanding Voltage - 1500V (RMS)
Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics
Mating - 7/16"-28UNEF-2B
Durability - ≥ 500 cycles

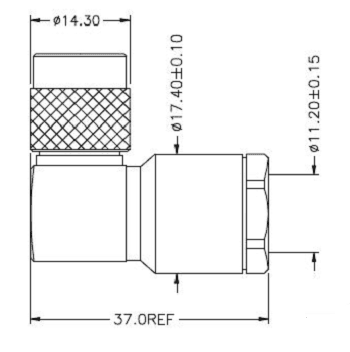

Drawing:
