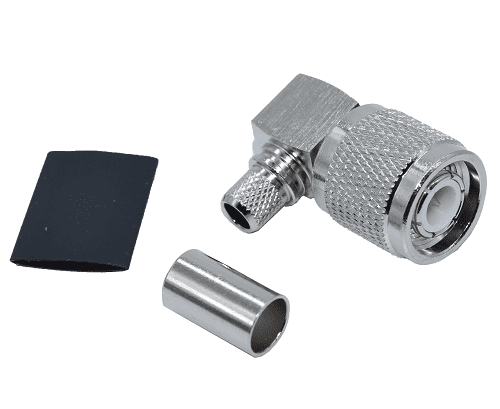

TNC Right-Angled Crimp Plug LMR240, 4D-FB
| Qty From | Qty To | Unit Price |
|---|---|---|
| 1 | 99 | £2.30 |
| 100 | ∞ | £1.41 |
Product Code:
213-1544-070
Specification:
Specification:
Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - Brass, Gold Plated
Insulator - PTFE
Crimp Ferrule - Brass, Nickel Plated
Electrical Characteristics
Impedance - 50Ω
Frequency Range Max. - DC - 3GHz
Dielectric Withstanding Voltage - 1500V (RMS)
Contact Resistance - Centre ≤ 10mΩ, Outer ≤ 2.5mΩ
Insulation Resistance - ≥ 5000mΩ
Mechanical Characteristics
Mating - 7/16-28UNEF-2B
Durability - ≥ 500 cycles
Environmental Characteristics
Temperature Range: - 55°C to +155°C

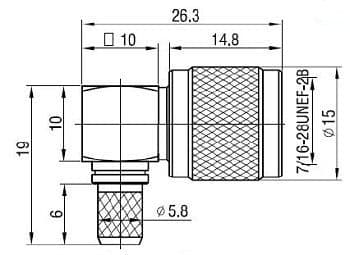

Drawing:
Assembly:
Pin: Solder
Outer: 6.48 mm hex
