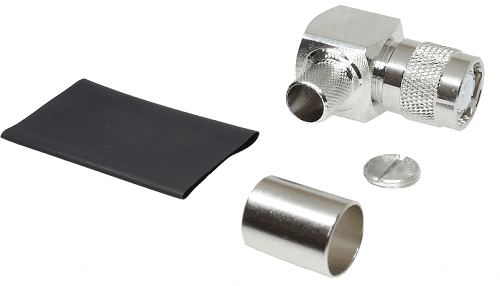

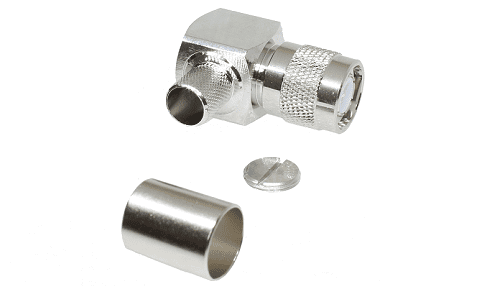

TNC Right-Angled Crimp Plug RG214

£1.95 ex. VAT (£2.34 inc. VAT)

In Stock: 135

Product Code: 213-1524-088

Specification:

Specification:

Materials & Plating
Shell/Body - Brass, Tri-alloy
Conductor - Brass, Ag
Insulator - PTFE
Other - Brass, Nickel Plated

Electrical Characteristics
Impedance - 50 ohm
Frequency Range Max. - DC - 3GHz
VSWR - VSWR ≤ 1.25
Contact Resistance - Centre ≤ 1.5mΩ, Outer ≤ 1mΩ
Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics
Durability - ≥ 500 cycles

Environmental Characteristics
Temperature Range: -40℃～+85℃

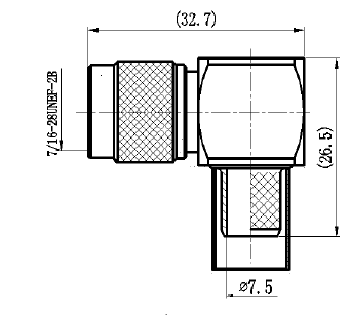

Drawing:

Assembly:
Pin: Solder
Outer: 10.9 mm hex
