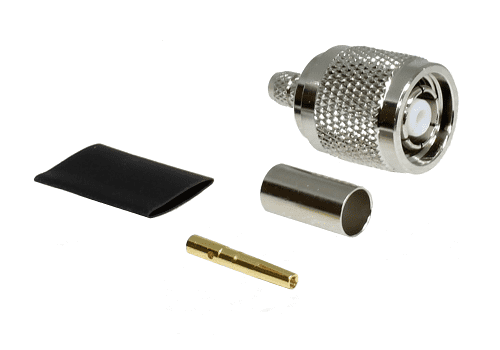

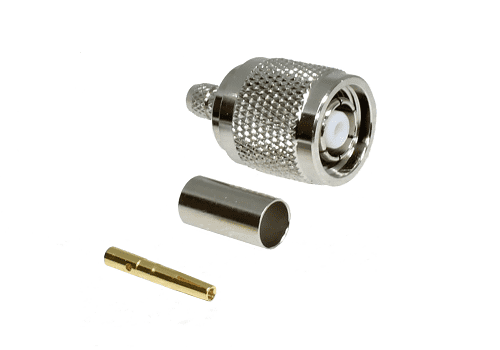

TNC-RP Crimp Plug LMR200, 3D-FB

£2.40 ex. VAT (£2.88 inc. VAT)

In Stock: 5

Product Code: 213-1020SRP-070

Specification:

Specification:

Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - Phosphor Bronze, Gold Plated
Insulator - PTFE
Crimp Ferrule - Brass, Nickel Plated

Electrical Characteristics
Impedance - 50Ω
Frequency Range Max. - DC - 3GHz
Dielectric Withstanding Voltage - 1500V (RMS)
Contact Resistance - Centre 10mΩ, Outer 2.5mΩ
Insulation Resistance - 5000mΩ

Mechanical Characteristics
Mating - 7/16-24UNEF-2B
Durability - 500 cycles

Environmental Characteristics
Temperature Range: - 55°C to +155 °C

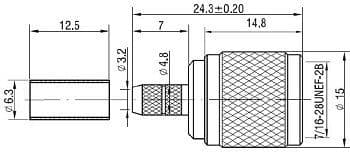

Drawing:

Assembly:
Pin: Solder
Outer: 5.4 mm hex
