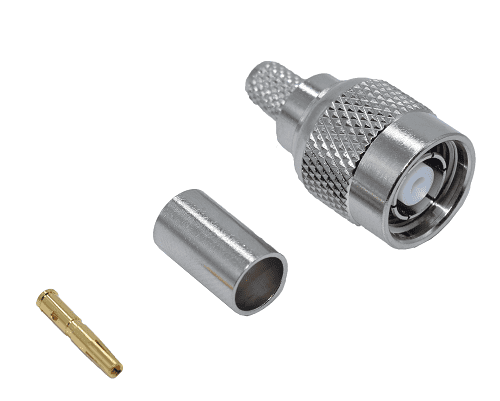

TNC-RP Crimp Plug LMR240 (crimp pin)
| Qty From | Qty To | Unit Price |
|---|---|---|
| 1 | 49 | £1.84 |
| 50 | 99 | £1.67 |
| 100 | ∞ | £1.54 |
Product Code:
213-1044RP-107
Specification:
Materials & Plating
Body - Brass, Nickel Plated
Pin - Brass, Gold Plated
Dielectric - TEFLON
Ferrule - Brass, Nickel Plated
Shell - Brass, Nickel Plated
Sleeve - Brass, Nickel Plated
Retaining Ring - Brass, Nickel Plated
Gasket - Rubber, Red

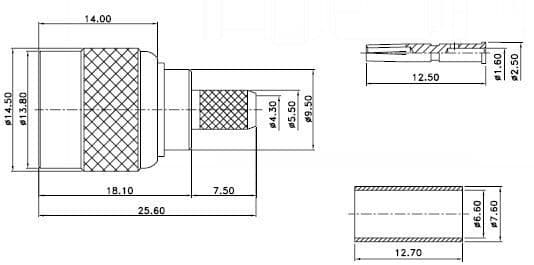

Drawing
Assembly
Pin: 1.74 mm hex
Outer: 6.48 mm hex
Body - Brass, Nickel Plated
Pin - Brass, Gold Plated
Dielectric - TEFLON
Ferrule - Brass, Nickel Plated
Shell - Brass, Nickel Plated
Sleeve - Brass, Nickel Plated
Retaining Ring - Brass, Nickel Plated
Gasket - Rubber, Red
Drawing
Assembly
Pin: 1.74 mm hex
Outer: 6.48 mm hex
