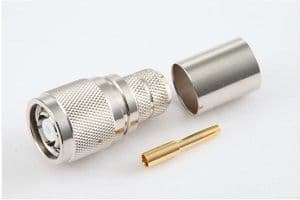

TNC-RP Crimp Plug RG213

£0.00 ex. VAT (£0.00 inc. VAT)

In Stock: 0

Product Code:  213-1023SRP-070
Sorry, this item is out of stock. Please contact us for availability

Specification:

Specification:

Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - Bronze, Gold Plated
Insulator - PTFE
Crimp Ferrule - Brass, Nickel Plated

Electrical Characteristics
Impedance - 50Ω
Frequency Range Max. - DC - 3GHz
Dielectric Withstanding Voltage - 1500V (RMS)
Contact Resistance - Centre 10mΩ, Outer 2.5mΩ
Insulation Resistance - 5000mΩ

Mechanical Characteristics
Mating - 7/16-24UNEF-2B
Durability - 500 cycles

Environmental Characteristics
Temperature Range: - 55°C to +155 °C

Drawing:


Assembly:
Pin: Solder
Outer: 10.9 mm hex
​​​​​​​
