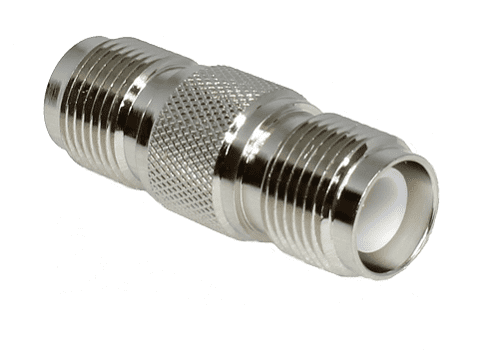

TNC-RP Jack to TNC-RP Jack Adaptor

£2.54 ex. VAT (£3.05 inc. VAT)

In Stock: 50

Product Code:  213-8000RP-070

Specification:

Specification:

Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - Brass, Gold Plated
Insulator - TEFLON

Electrical Characteristics
Impedance - 50 ohm
Frequency Range Max. - DC - 5.85 GHz
Dielectric Withstanding Voltage - 1500V (RMS)
Contact Resistance - Centre ≤ 10mΩ, Outer ≤ 2.5mΩ
Insulation Resistance - ≥ 5000mΩ
VSWR - ≤1.4
IL - ≤0. 2dB

Mechanical Characteristics
Mating - TNC:7/16-28UNEF-2A
Durability - ≥ 500 cycles

Environmental Characteristics
Temperature Range: - 55°C to +155°C

Drawing:
