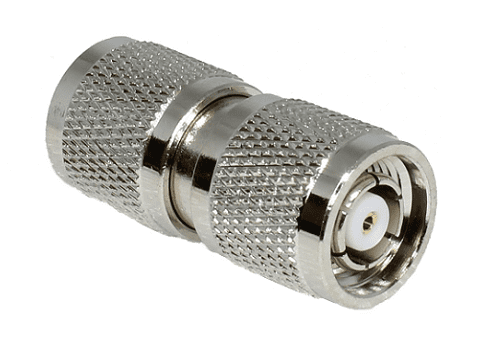

Specification:
Specification:
Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - Bronze, Gold Plated
Insulator - TEFLON
Electrical Characteristics
Impedance - 50 ohm
Frequency Range Max. - DC - 5.85 GHz
Dielectric Withstanding Voltage - 1500V (RMS)
Contact Resistance - Centre ≤ 10mΩ, Outer ≤ 2.5mΩ
Insulation Resistance - ≥ 5000mΩ
VSWR - ≤ 1.6
IL - ≤ 0.2dB
Mechanical Characteristics
Mating - TNC:7/16-28UNEF-2A
Durability - ≥ 500 cycles
Environmental Characteristics
Temperature Range: - 55°C to +155°C
Drawing:
