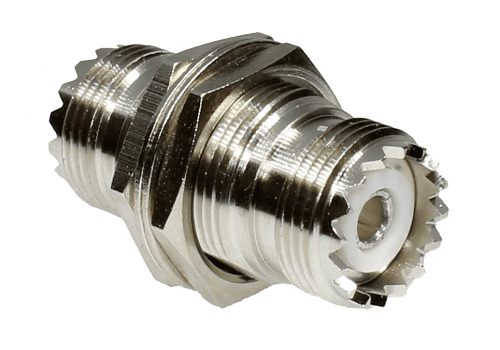

UHF Bulkhead Jack/Jack Adaptor

£4.65 ex. VAT (£5.58 inc. VAT)

In Stock: 197

Product Code:  255-8500-070

Specification:

Specification:

Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - Brass, Silver Plated
Insulator - ABS
Nut - Brass, Nickel Plated
Washer - Brass, Nickel Plated

Electrical Characteristics
Impedance - 50 ohm
Frequency Range Max. - DC - 300 MHz
Dielectric Withstanding Voltage - 2000V(RMS)
Contact Resistance - Centre ≤ 5mΩ, Outer ≤ 5mΩ
Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics
Mating - 5/8-24UNEF-2A
Durability - ≥ 500 cycles

Environmental Characteristics
Temperature Range: - 45°C to +85°C

Drawing:

Mounting Details
