UHF Crimp Plug LMR300, 5D-FB

Qty From	Qty To	Unit Price
1	49	£5.17
50	99	£4.70
100	∞	£4.30

In Stock: 200

Product Code: 255-1078S-070

Specification:

Specification:

Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - Brass, Silver Plated
Insulator - PTFE

Electrical Characteristics
Impedance - 50 ohm
Frequency Range Max. - DC - 300 MHz
Dielectric Withstanding Voltage - 2000V(RMS)
Contact Resistance - Centre ≤ 5mΩ, Outer ≤ 5mΩ
Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics
Mating - 5/8”-24UNEF-2B
Durability - ≥ 500 cycles

Environmental Characteristics
Temperature Range: - 55°C to +155°C

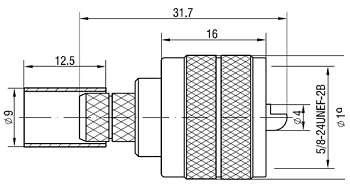

Drawing:

Assembly:
Pin: Solder
Outer: 7.9 mm hex
