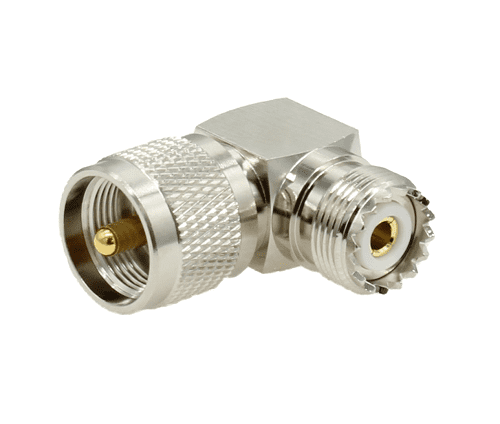

UHF Right-Angled Plug/Jack Adaptor

£2.50 ex. VAT (£3.00 inc. VAT)

In Stock: 0

Product Code:  255-8400-070
Sorry, this item is out of stock. Please contact us for availability

Specification:

Specification:

Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - Brass, Gold Plated
Insulator - ABS

Electrical Characteristics
Impedance - 50 ohm
Frequency Range Max. - DC - 300GHz
Dielectric Withstanding Voltage - 2000V(RMS)
Contact Resistance - Centre ≤ 5mΩ, Outer ≤ 5mΩ
Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics
Mating - 5/8-24UNEF-2A
Durability - ≥ 500 cycles

Environmental Characteristics
Temperature Range: - 45°C to +85°C

Drawing
